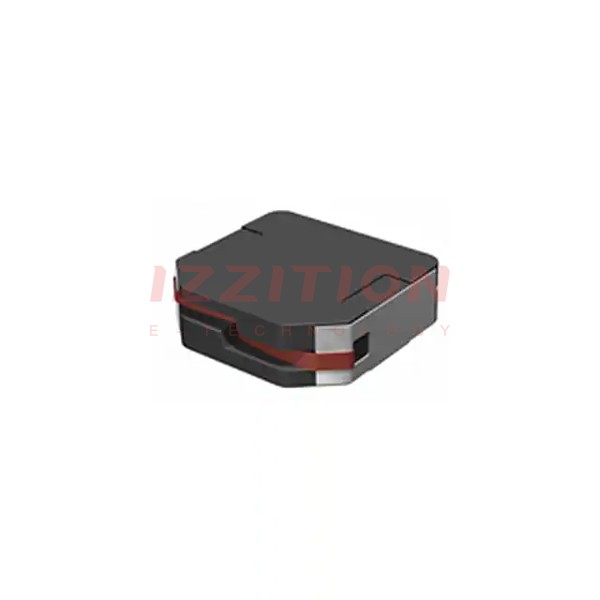

| Part Number | 1226AS-H-4R7M=P2 | 1227AS-H-4R7M=P2 | 1225AS-H-4R7M=P2 | 1226AS-H-2R7M=P2 |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 4.7 µH | 4.7 µH | 4.7 µH | 2.7 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.6 A | 1.8 A | 1.4 A | 2 A |
| Current - Saturation (Isat) | 950mA | 1.1A | 880mA | 1.3A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 96mOhm Max | 92mOhm Max | 126mOhm Max | 63mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.126" L x 0.118" W (3.20mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.071" (1.80mm) | 0.047" (1.20mm) | 0.059" (1.50mm) |
