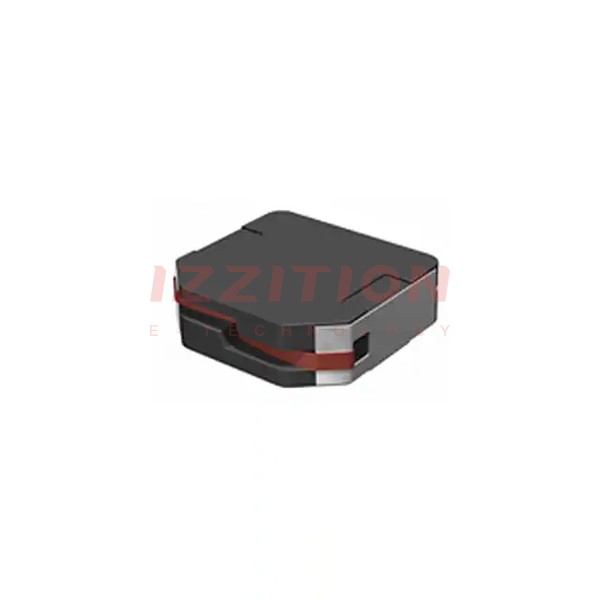

| Part Number | 1225AS-H-120M=P2 | 1227AS-H-120M=P2 | 1226AS-H-120M=P2 | 1225AS-H-100M=P2 |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 12 µH | 12 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 760 mA | 1 A | 850 mA | 850 mA |
| Current - Saturation (Isat) | 550mA | 650mA | 600mA | 580mA |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 350mOhm Max | 258mOhm Max | 275mOhm Max | 300mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.126" L x 0.118" W (3.20mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.071" (1.80mm) | 0.059" (1.50mm) | 0.047" (1.20mm) |
