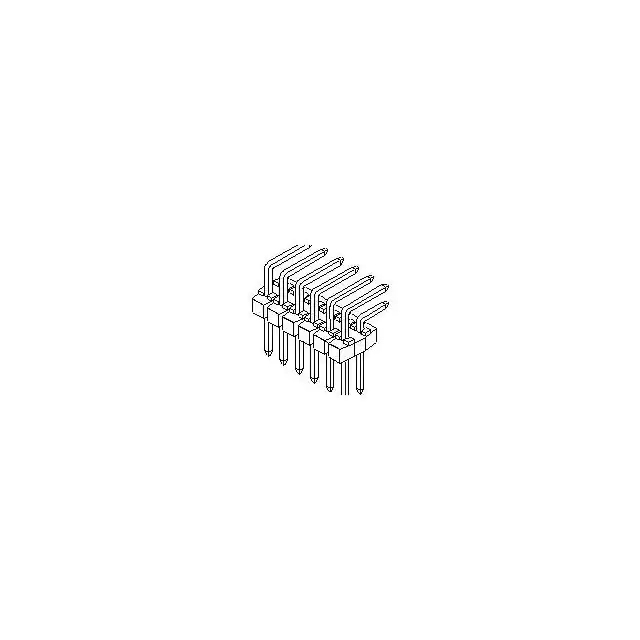

Molex 90122-0780

Manufacturer No:
90122-0780
Manufacturer:
Molex
Package:
Box
Datasheet:
90122-0780 Datasheet
ECAD Model:
-
Description:
CGRID DR RA PN 675290MM AUE 40CK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.266" (6.75mm)
Contact Length - Post:0.114" (2.90mm)
Overall Contact Length:-
Insulation Height:0.242" (6.14mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$5.22
37

Please send RFQ , we will respond immediately.

Similar Products

Part Number 90122-0780 90122-0781   90122-0782   90122-0783   90122-0784   90122-0785   90122-0786   90122-0787   90122-0788   90122-0789   90122-0790   90122-0770
Manufacturer Molex Molex Molex Molex Molex Molex Molex Molex Molex Molex Molex Molex
Product Status Active Active Active Active Active Active Active Active Active Active Active Active
Connector Type Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions 40 42 44 46 48 50 52 54 56 58 60 20
Number of Rows 2 2 2 2 2 2 2 2 2 2 2 2
Row Spacing - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions Loaded All All All All All All All All All All All All
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Shrouding Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Length - Mating 0.266" (6.75mm) 0.266" (6.75mm) 0.266" (6.75mm) 0.266" (6.75mm) 0.266" (6.75mm) 0.266" (6.75mm) 0.266" (6.75mm) 0.266" (6.75mm) 0.266" (6.75mm) 0.266" (6.75mm) 0.266" (6.75mm) 0.266" (6.75mm)
Contact Length - Post 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm)
Overall Contact Length - - - - - - - - - - - -
Insulation Height 0.242" (6.14mm) 0.242" (6.14mm) 0.242" (6.14mm) 0.242" (6.14mm) 0.242" (6.14mm) 0.242" (6.14mm) 0.242" (6.14mm) 0.242" (6.14mm) 0.242" (6.14mm) 0.242" (6.14mm) 0.242" (6.14mm) 0.242" (6.14mm)
Contact Shape Square Square Square Square Square Square Square Square Square Square Square Square
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm)
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass Brass Brass Brass Brass Brass Brass Brass Brass
Insulation Material Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled
Features - - - - - - - - - - - -
Operating Temperature - - - - - - - - - - - -
Ingress Protection - - - - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black Black Black Black Black Black
Current Rating (Amps) - - - - - - - - - - - -
Voltage Rating - - - - - - - - - - - -
