Please send RFQ , we will respond immediately.

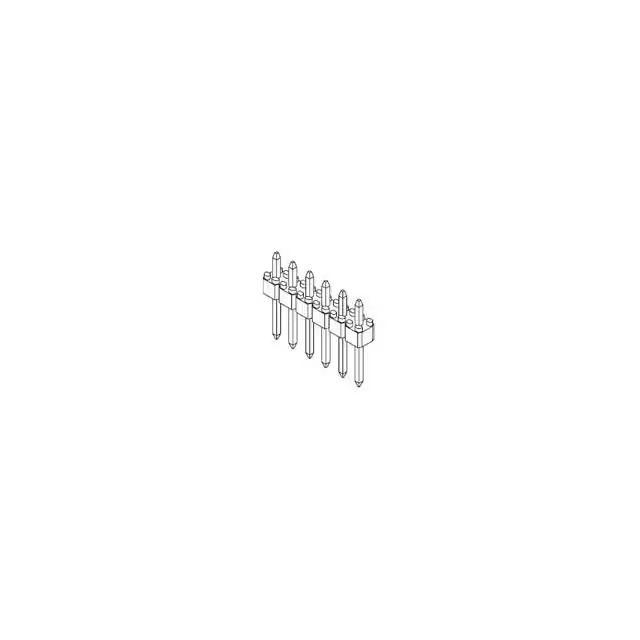

| Part Number | 90120-0774 | 90122-0774 | 90120-0770 | 90120-0771 | 90120-0772 |
|---|---|---|---|---|---|
| Manufacturer | Molex | Molex | Molex | Molex | Molex |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | - | Header, Breakaway | - | - | - |
| Contact Type | - | Male Pin | - | - | - |
| Pitch - Mating | - | 0.100" (2.54mm) | - | - | - |
| Number of Positions | - | 28 | - | - | - |
| Number of Rows | - | 2 | - | - | - |
| Row Spacing - Mating | - | 0.100" (2.54mm) | - | - | - |
| Number of Positions Loaded | - | All | - | - | - |
| Style | - | Board to Board or Cable | - | - | - |
| Shrouding | - | Unshrouded | - | - | - |
| Mounting Type | - | Through Hole, Right Angle | - | - | - |
| Termination | - | Solder | - | - | - |
| Fastening Type | - | Push-Pull | - | - | - |
| Contact Length - Mating | - | 0.266" (6.75mm) | - | - | - |
| Contact Length - Post | - | 0.114" (2.90mm) | - | - | - |
| Overall Contact Length | - | - | - | - | - |
| Insulation Height | - | 0.242" (6.14mm) | - | - | - |
| Contact Shape | - | Square | - | - | - |
| Contact Finish - Mating | - | Gold | - | - | - |
| Contact Finish Thickness - Mating | - | 15.0µin (0.38µm) | - | - | - |
| Contact Finish - Post | - | Tin | - | - | - |
| Contact Material | - | Brass | - | - | - |
| Insulation Material | - | Polyester, Glass Filled | - | - | - |
| Features | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | - | UL94 V-0 | - | - | - |
| Insulation Color | - | Black | - | - | - |
| Current Rating (Amps) | - | - | - | - | - |
| Voltage Rating | - | - | - | - | - |
