Please send RFQ , we will respond immediately.

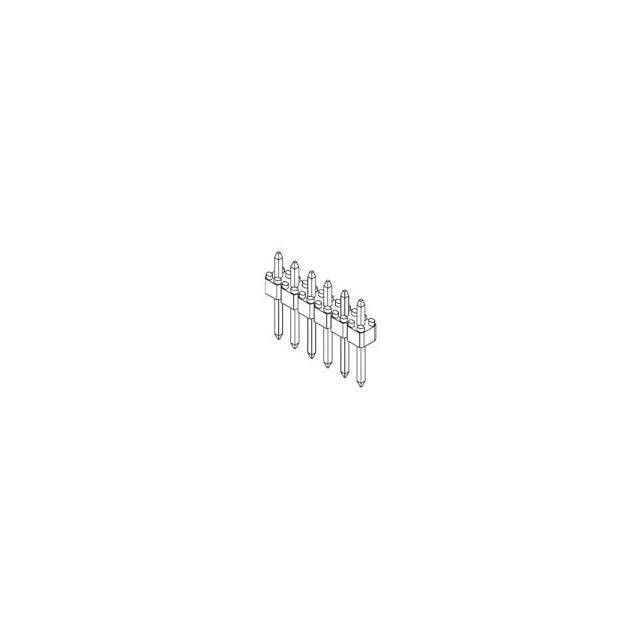

| Part Number | 90120-0770 | 90120-0771 | 90120-0772 | 90120-0774 | 90122-0770 |
|---|---|---|---|---|---|
| Manufacturer | Molex | Molex | Molex | Molex | Molex |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | - | - | - | - | Header, Breakaway |
| Contact Type | - | - | - | - | Male Pin |
| Pitch - Mating | - | - | - | - | 0.100" (2.54mm) |
| Number of Positions | - | - | - | - | 20 |
| Number of Rows | - | - | - | - | 2 |
| Row Spacing - Mating | - | - | - | - | 0.100" (2.54mm) |
| Number of Positions Loaded | - | - | - | - | All |
| Style | - | - | - | - | Board to Board or Cable |
| Shrouding | - | - | - | - | Unshrouded |
| Mounting Type | - | - | - | - | Through Hole, Right Angle |
| Termination | - | - | - | - | Solder |
| Fastening Type | - | - | - | - | Push-Pull |
| Contact Length - Mating | - | - | - | - | 0.266" (6.75mm) |
| Contact Length - Post | - | - | - | - | 0.114" (2.90mm) |
| Overall Contact Length | - | - | - | - | - |
| Insulation Height | - | - | - | - | 0.242" (6.14mm) |
| Contact Shape | - | - | - | - | Square |
| Contact Finish - Mating | - | - | - | - | Gold |
| Contact Finish Thickness - Mating | - | - | - | - | 15.0µin (0.38µm) |
| Contact Finish - Post | - | - | - | - | Tin |
| Contact Material | - | - | - | - | Brass |
| Insulation Material | - | - | - | - | Polyester, Glass Filled |
| Features | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | - | - | - | - | UL94 V-0 |
| Insulation Color | - | - | - | - | Black |
| Current Rating (Amps) | - | - | - | - | - |
| Voltage Rating | - | - | - | - | - |
