5600201120
  • Share:

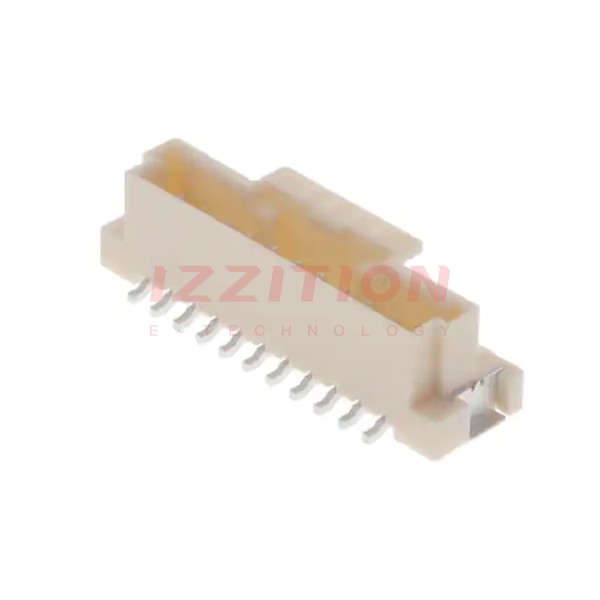

Molex 5600201120

Manufacturer No:
5600201120
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
5600201120 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 11POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:11
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.236" (6.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$1.79
480

Please send RFQ , we will respond immediately.
