Molex-5600200820 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	8
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.315" (8.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon
Features:	Solder Retention
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	-

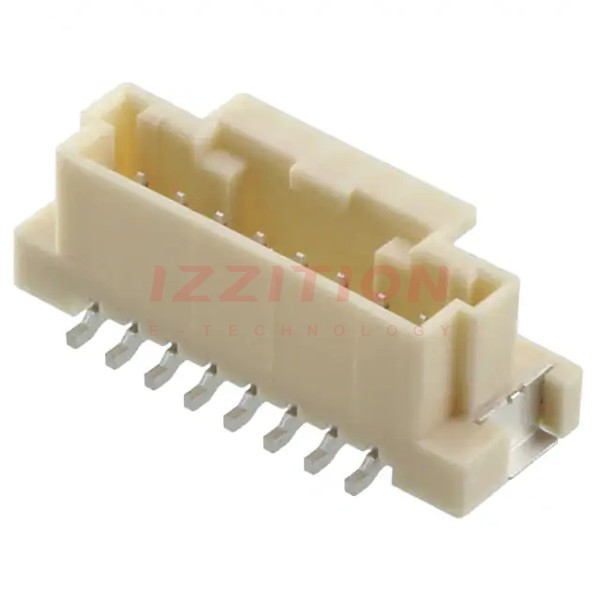

Molex 5600200820
