Molex-5054062460 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Cable/Wire
Number of Positions:	24
Number of Positions Loaded:	All
Pitch - Mating:	0.059" (1.50mm)
Number of Rows:	2
Row Spacing - Mating:	-
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Holder
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Insulation Color:	Beige
Insulation Height:	0.344" (8.75mm)
Contact Length - Post:	-
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Solder Retention
Current Rating (Amps):	-
Voltage Rating:	-

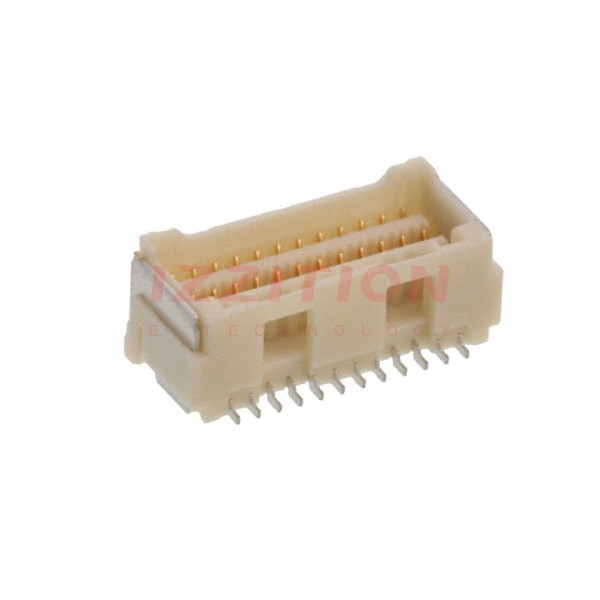

Molex 5054062460
