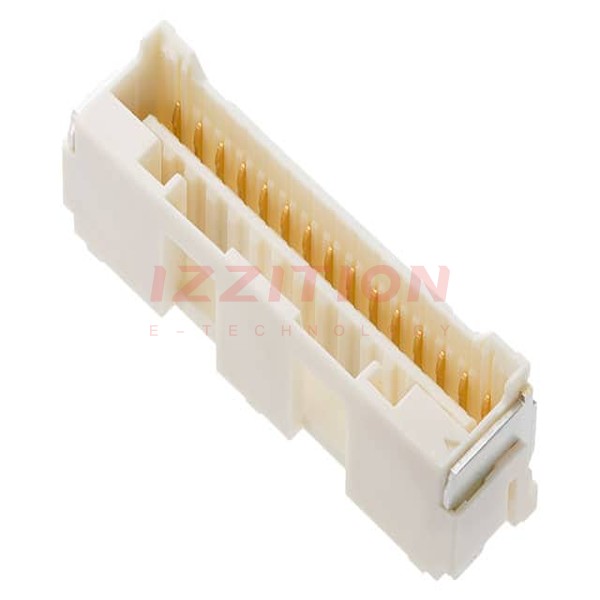

Molex 5054051570

Manufacturer No:
5054051570
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
5054051570 Datasheet
ECAD Model:
-
Description:
CONN RCPT 15POS 0.059 GOLD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Forked
Style:Board to Cable/Wire
Number of Positions:15
Number of Positions Loaded:All
Pitch - Mating:0.059" (1.50mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Beige
Insulation Height:0.285" (7.25mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Solder Retention
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:100V
0 Remaining View Similar

In Stock

-
22

Please send RFQ , we will respond immediately.
