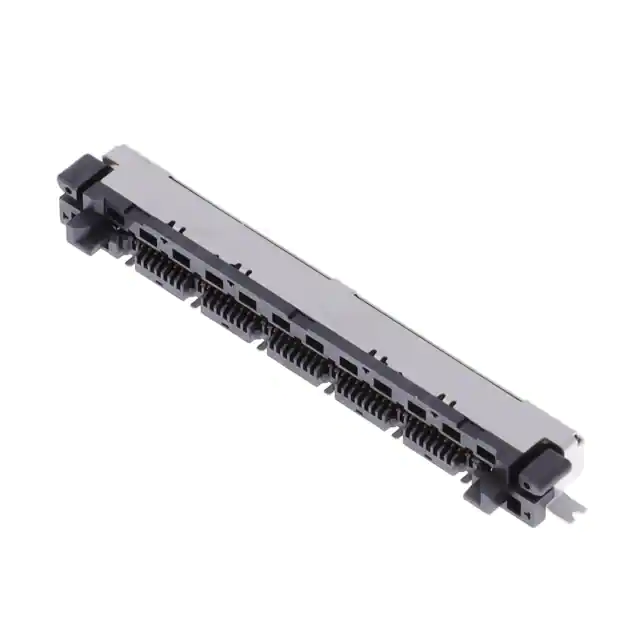

Molex 5039085120

Manufacturer No:
5039085120
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
5039085120 Datasheet
ECAD Model:
-
Description:
CONN .50MM LVDS NON-ZIF 51 CIRC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:51
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.33mm
Height Above Board:0.148" (3.75mm)
Locking Feature:-
Cable End Type:Tabbed
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:-
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-20°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$2.92
318

Please send RFQ , we will respond immediately.
