Molex-5037630691 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.039" (1.00mm)
Number of Positions:	6
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.059" (1.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.94µin (0.100µm)
Contact Finish - Post:	Gold
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon
Features:	Solder Retention
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	150V

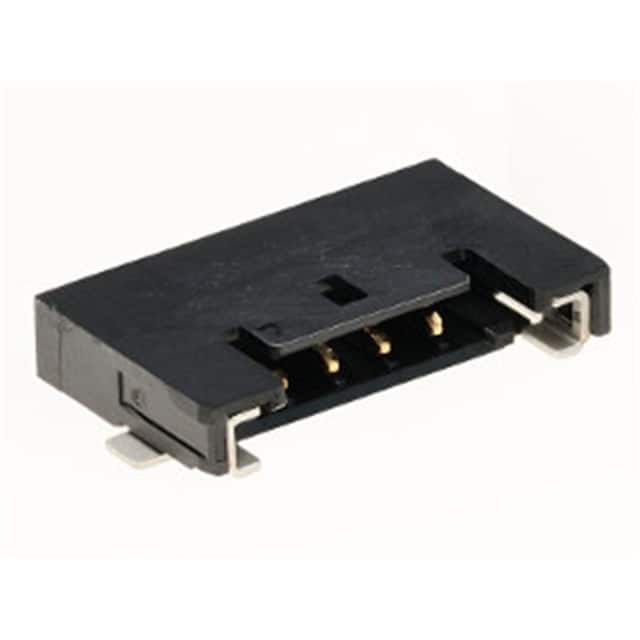

Molex 5037630691
