Please send RFQ , we will respond immediately.

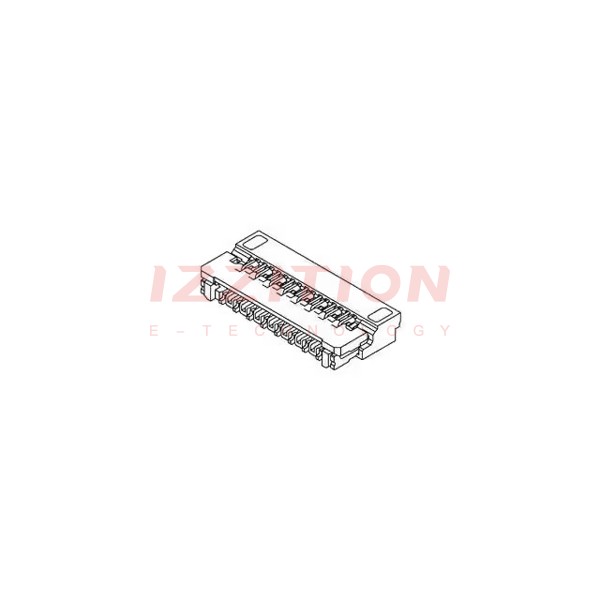

| Part Number | 503566-4300 | 503566-2300 | 503566-4100 |
|---|---|---|---|
| Manufacturer | Molex | Molex | Molex |
| Product Status | Active | Active | Obsolete |
| Flat Flex Type | - | - | FPC |
| Mounting Type | - | - | Surface Mount, Right Angle |
| Connector/Contact Type | - | - | Contacts, Bottom |
| Number of Positions | - | - | 41 |
| Pitch | - | - | 0.012" (0.30mm) |
| Termination | - | - | Solder |
| FFC, FCB Thickness | - | - | 0.20mm |
| Height Above Board | - | - | 0.037" (0.95mm) |
| Locking Feature | - | - | Flip Lock |
| Cable End Type | - | - | Tabbed |
| Contact Material | - | - | Phosphor Bronze |
| Contact Finish | - | - | Gold |
| Housing Material | - | - | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | - | - | Polyamide (PA), Nylon, Glass Filled |
| Features | - | - | Solder Retention |
| Voltage Rating | - | - | 50V |
| Operating Temperature | - | - | -40°C ~ 85°C |
| Material Flammability Rating | - | - | UL94 V-0, UL94 HB |
