Please send RFQ , we will respond immediately.

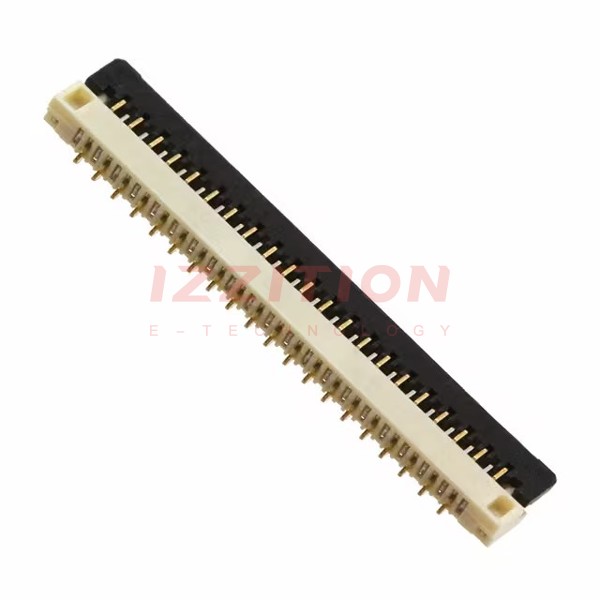

| Part Number | 503566-4100 | 503566-4300 | 503566-1100 |
|---|---|---|---|
| Manufacturer | Molex | Molex | Molex |
| Product Status | Obsolete | Active | Active |
| Flat Flex Type | FPC | - | - |
| Mounting Type | Surface Mount, Right Angle | - | - |
| Connector/Contact Type | Contacts, Bottom | - | - |
| Number of Positions | 41 | - | - |
| Pitch | 0.012" (0.30mm) | - | - |
| Termination | Solder | - | - |
| FFC, FCB Thickness | 0.20mm | - | - |
| Height Above Board | 0.037" (0.95mm) | - | - |
| Locking Feature | Flip Lock | - | - |
| Cable End Type | Tabbed | - | - |
| Contact Material | Phosphor Bronze | - | - |
| Contact Finish | Gold | - | - |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | - | - |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | - | - |
| Features | Solder Retention | - | - |
| Voltage Rating | 50V | - | - |
| Operating Temperature | -40°C ~ 85°C | - | - |
| Material Flammability Rating | UL94 V-0, UL94 HB | - | - |
