Molex-5034801600 - FFC, FPC (Flat Flexible) Connectors Product Specifications and Latest Quotes

Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	16
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.039" (1.00mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Straight, Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Solder Retention
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0, UL94 HB

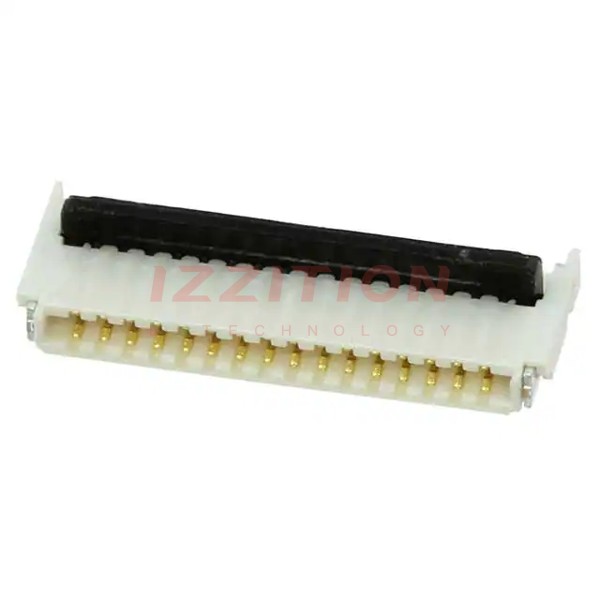

Molex 5034801600
