Molex-5025982391 - FFC, FPC (Flat Flexible) Connectors Product Specifications and Latest Quotes

Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	23
Pitch:	0.012" (0.30mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.045" (1.14mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Solder Retention
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0, UL94 HB

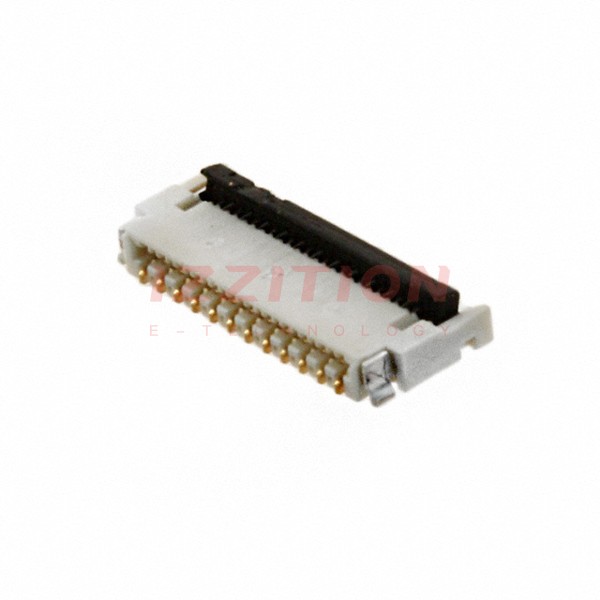

Molex 5025982391
