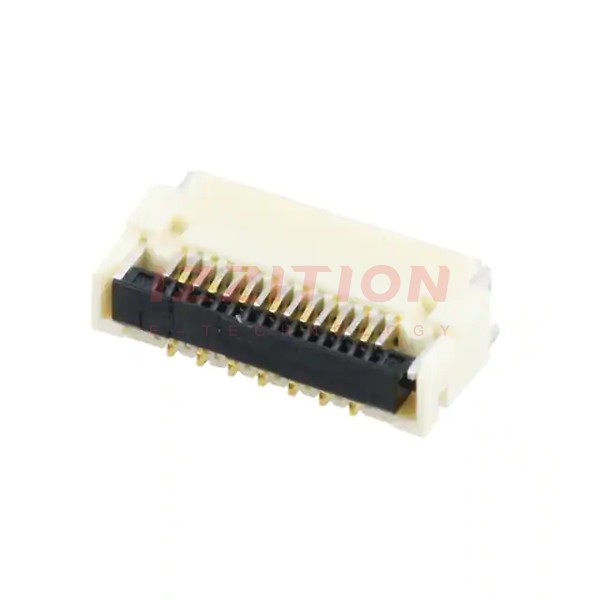

Molex 5025981593

Manufacturer No:
5025981593
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
5025981593 Datasheet
ECAD Model:
-
Description:
0.3 FPC BACK FLIP HSG ASSY15CKTE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:15
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.045" (1.14mm)
Locking Feature:Flip Lock, Backlock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:Polyamide (PA), Nylon, Glass Filled
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0, UL94 HB
0 Remaining View Similar

In Stock

$1.38
480

Please send RFQ , we will respond immediately.
