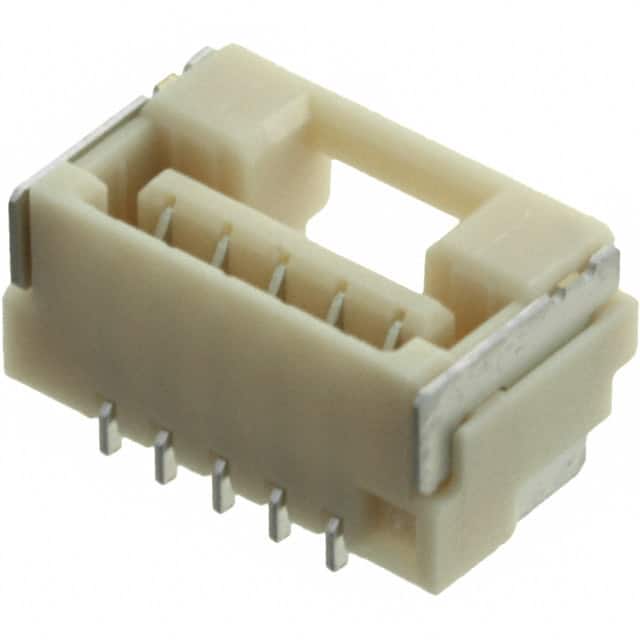

Molex 5023860570

Manufacturer No:
5023860570
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
5023860570 Datasheet
ECAD Model:
-
Description:
CONN RCPT 5POS 0.049 TIN SMD R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Forked
Style:Board to Cable/Wire
Number of Positions:5
Number of Positions Loaded:All
Pitch - Mating:0.049" (1.25mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Insulation Color:Natural
Insulation Height:0.215" (5.45mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Solder Retention
Current Rating (Amps):1A
Voltage Rating:50V
0 Remaining View Similar

In Stock

$0.76
1,119

Please send RFQ , we will respond immediately.
