Molex-5023820372 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Cable/Wire
Number of Positions:	3
Number of Positions Loaded:	All
Pitch - Mating:	0.049" (1.25mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Holder
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Insulation Color:	Natural
Insulation Height:	0.173" (4.40mm)
Contact Length - Post:	-
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Pick and Place, Solder Retention
Current Rating (Amps):	1A
Voltage Rating:	50V

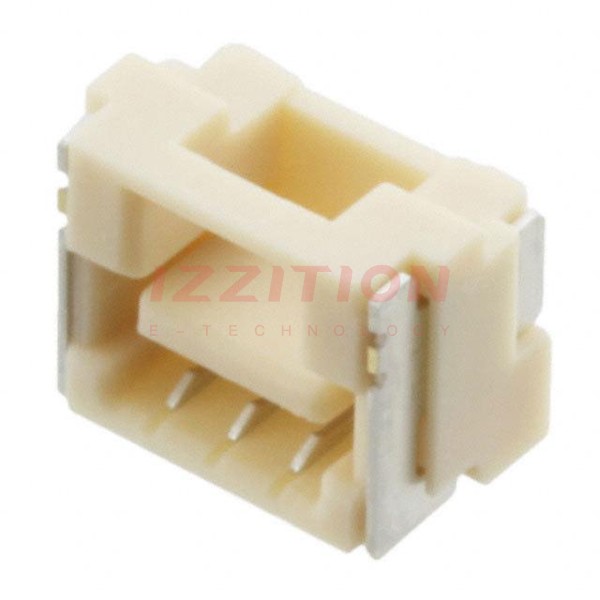

Molex 5023820372
