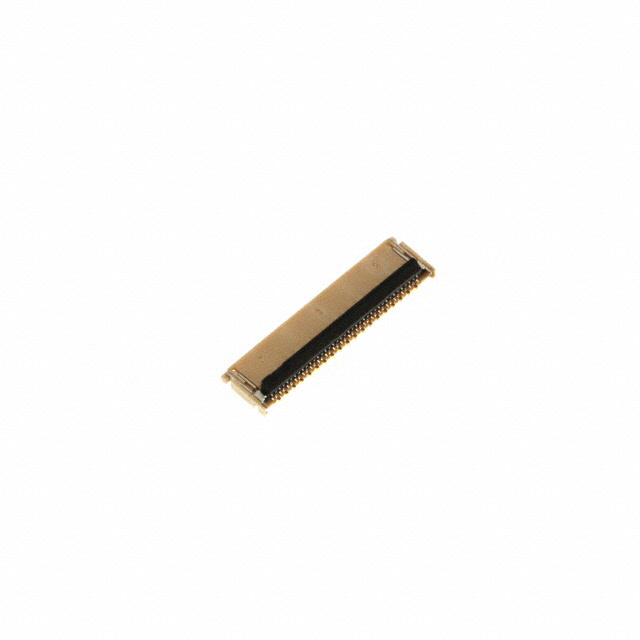

Molex 5022503991

Manufacturer No:
5022503991
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
5022503991 Datasheet
ECAD Model:
-
Description:
CONN FPC 39POS 0.30MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:39
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.035" (0.88mm)
Locking Feature:Flip Lock, Backlock
Cable End Type:Notched or Tabbed
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:-
Voltage Rating:50V
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$3.43
72

Please send RFQ , we will respond immediately.
