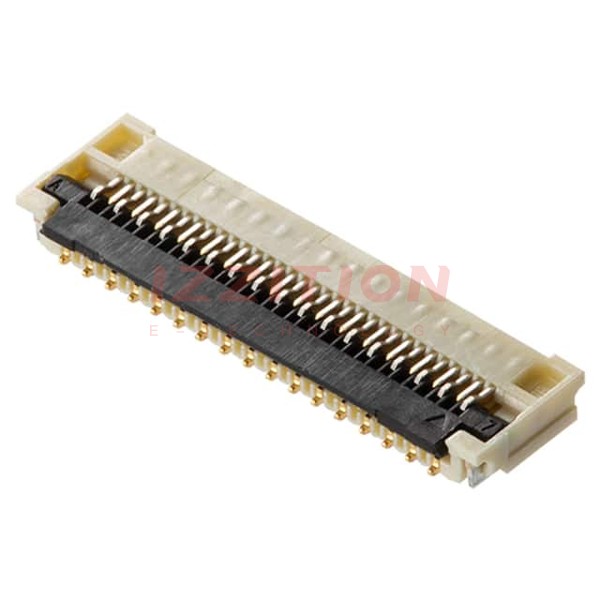

Molex 5020783360

Manufacturer No:
5020783360
Manufacturer:
Molex
Package:
Bulk
Datasheet:
5020783360 Datasheet
ECAD Model:
-
Description:
CONN HSG ASSY FPC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:33
Pitch:0.010" (0.25mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.039" (1.00mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyamide (PA), Nylon
Features:-
Voltage Rating:50V
Operating Temperature:-20°C ~ 85°C
Material Flammability Rating:UL94 V-0, UL94 HB
0 Remaining View Similar

In Stock

-
25

Please send RFQ , we will respond immediately.
