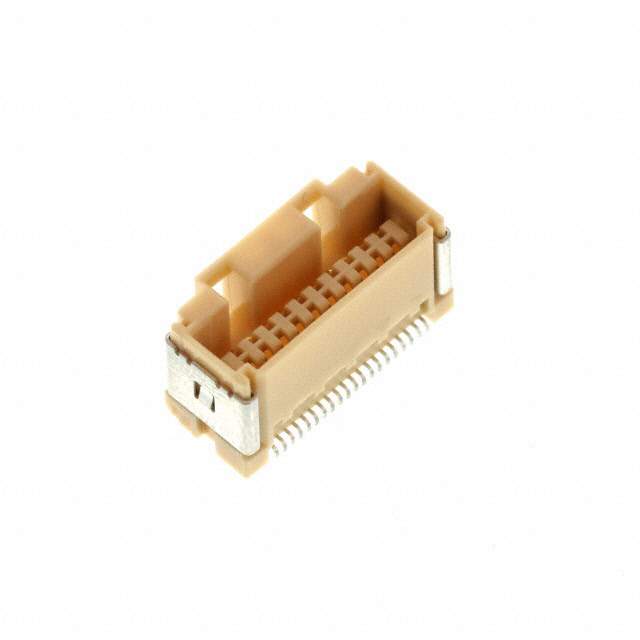

Molex 5020462070

Manufacturer No:
5020462070
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
5020462070 Datasheet
ECAD Model:
-
Description:
CONN RCPT 20P 0.049 GOLD SMD R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Forked
Style:Board to Cable/Wire
Number of Positions:20
Number of Positions Loaded:All
Pitch - Mating:0.049" (1.25mm)
Number of Rows:2
Row Spacing - Mating:-
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.90µin (0.099µm)
Insulation Color:Natural
Insulation Height:0.295" (7.50mm)
Contact Length - Post:-
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place, Solder Retention
Current Rating (Amps):1A
Voltage Rating:50V
0 Remaining View Similar

In Stock

$3.02
226

Please send RFQ , we will respond immediately.
