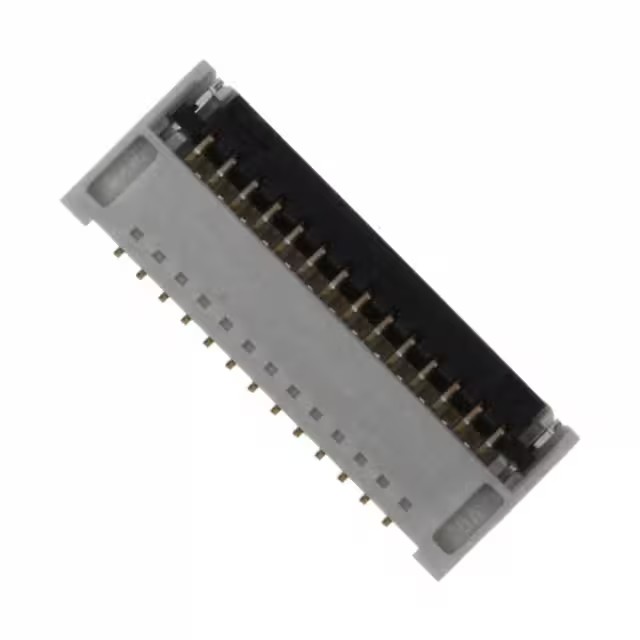

| Part Number | 501912-2790 | 501912-4790 |
|---|---|---|
| Manufacturer | Molex | Molex |
| Product Status | Active | Active |
| Flat Flex Type | FPC | FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 27 | 47 |
| Pitch | 0.012" (0.30mm) | 0.012" (0.30mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.20mm | 0.20mm |
| Height Above Board | - | - |
| Locking Feature | Flip Lock | Flip Lock |
| Cable End Type | Tapered | Tapered |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold |
| Housing Material | Polymer, Glass Filled | Polymer, Glass Filled |
| Actuator Material | Polymer, Glass Filled | Polymer, Glass Filled |
| Features | Solder Retention | Solder Retention |
| Voltage Rating | 50V | 50V |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
