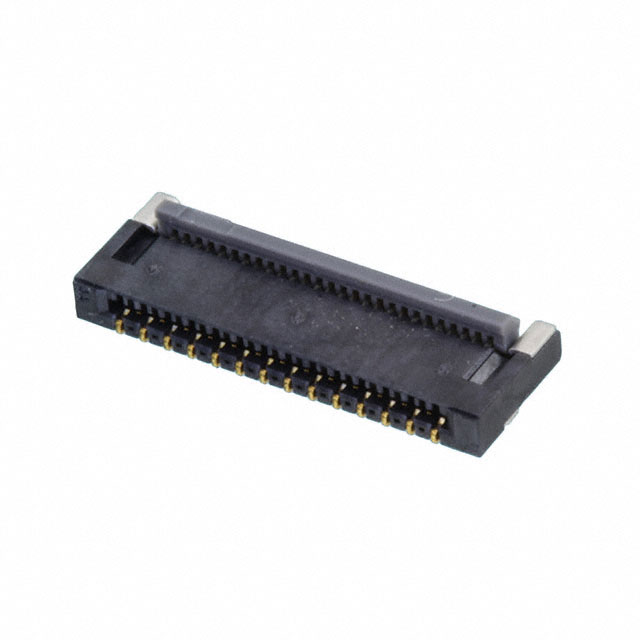

Molex 5016162775

Manufacturer No:
5016162775
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
5016162775 Datasheet
ECAD Model:
-
Description:
CONN FPC TOP 27POS 0.30MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:27
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.044" (1.12mm)
Locking Feature:Flip Lock, Backlock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Polymer
Actuator Material:Polymer
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
373

Please send RFQ , we will respond immediately.
