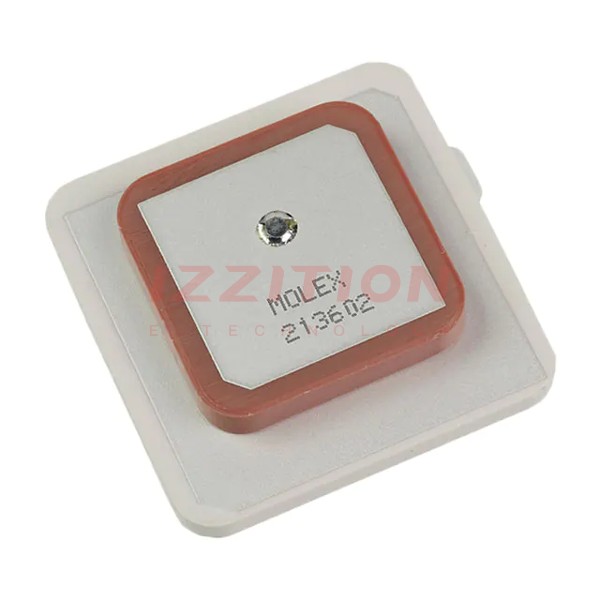

Molex 2136020001

Manufacturer No:
2136020001
Manufacturer:
Molex
Package:
Tray
Datasheet:
2136020001 Datasheet
ECAD Model:
-
Description:
ANTENNA GPS L1/L2 STACKED
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

RF Family/Standard:Navigation
Frequency Group:UHF (1GHz ~ 2GHz)
Frequency (Center/Band):1.2275GHz, 1.575GHz
Frequency Range:1.2265GHz ~ 1.2286GHz, 1.574GHz ~ 1.576GHz
Antenna Type:Ceramic Patch
Number of Bands:2
VSWR:-
Return Loss:-15dB
Gain:2.1dBi, 5.3dBi
Power - Max:-
Features:-
Termination:Solder
Ingress Protection:-
Mounting Type:Adhesive
Height (Max):0.276" (7.00mm)
Applications:GLONASS, GNSS, GPS
0 Remaining View Similar

In Stock

$13.07
56

Please send RFQ , we will respond immediately.
