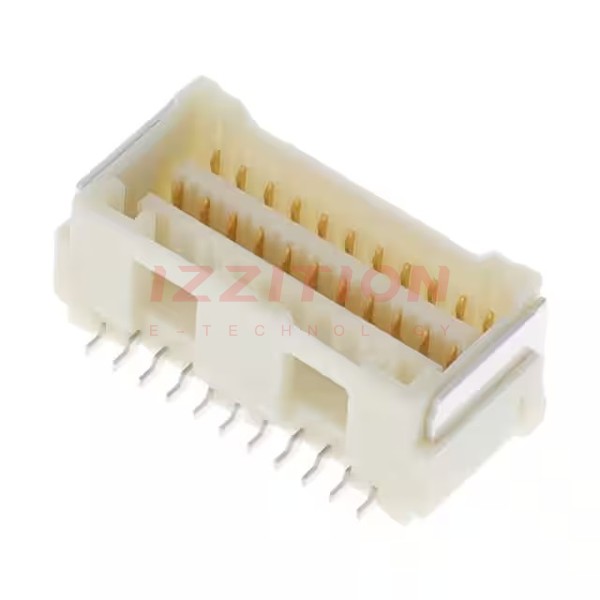

Molex 2132272270

Manufacturer No:
2132272270
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
2132272270 Datasheet
ECAD Model:
-
Description:
DRVT 1.5 SMT AU0.76 ETP 22P NAT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Forked
Style:Board to Cable/Wire
Number of Positions:22
Number of Positions Loaded:All
Pitch - Mating:0.059" (1.50mm)
Number of Rows:2
Row Spacing - Mating:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Natural
Insulation Height:0.346" (8.80mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place, Solder Retention
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:100VAC/DC
0 Remaining View Similar

In Stock

$10.26
97

Please send RFQ , we will respond immediately.
