2122100061
  • Share:

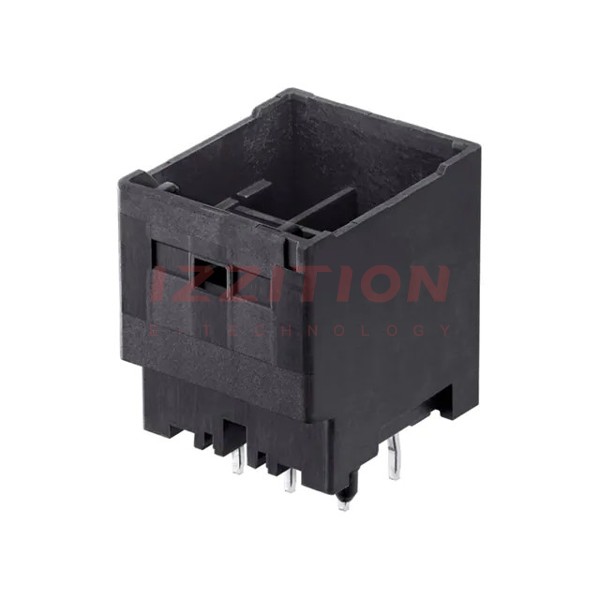

Molex 2122100061

Manufacturer No:
2122100061
Manufacturer:
Molex
Package:
Tray
Datasheet:
2122100061 Datasheet
ECAD Model:
-
Description:
CP-3.3 W/B HDR ASSY DR ST DIP BL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.130" (3.30mm)
Number of Positions:6
Number of Rows:2
Row Spacing - Mating:0.163" (4.14mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.132" (3.35mm)
Overall Contact Length:-
Insulation Height:0.549" (13.94mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Board Guide, Glow Wire Compliant
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:500VAC/DC
0 Remaining View Similar

In Stock

$2.46
244

Please send RFQ , we will respond immediately.
