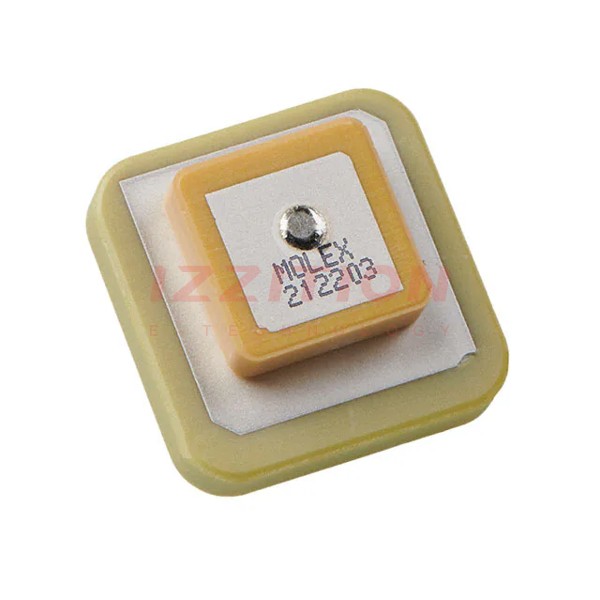

Molex 2122030001

Manufacturer No:
2122030001
Manufacturer:
Molex
Package:
Tray
Datasheet:
2122030001 Datasheet
ECAD Model:
-
Description:
GPS L1/L5 25MM STACKED PATCH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

RF Family/Standard:Navigation
Frequency Group:UHF (1GHz ~ 2GHz)
Frequency (Center/Band):1.176GHz, 1.575GHz
Frequency Range:1.171GHz ~ 1.181GHz, 1.57GHz ~ 1.58GHz
Antenna Type:Ceramic Patch
Number of Bands:2
VSWR:-
Return Loss:-20dB, -15dB
Gain:3.1dBi, 4.9dBi
Power - Max:2 W
Features:-
Termination:-
Ingress Protection:-
Mounting Type:Adhesive
Height (Max):0.315" (8.00mm)
Applications:GNSS, GPS
0 Remaining View Similar

In Stock

$11.09
78

Please send RFQ , we will respond immediately.
