Molex-2077601271 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	12
Number of Rows:	2
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.285" (7.25mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin-Bismuth
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Contact Finish - Post:	Tin-Bismuth
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Solder Retention
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	50VAC/DC

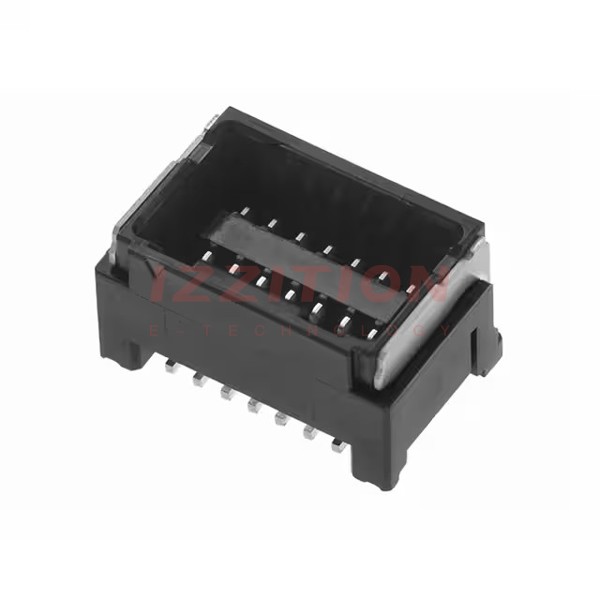

Molex 2077601271
