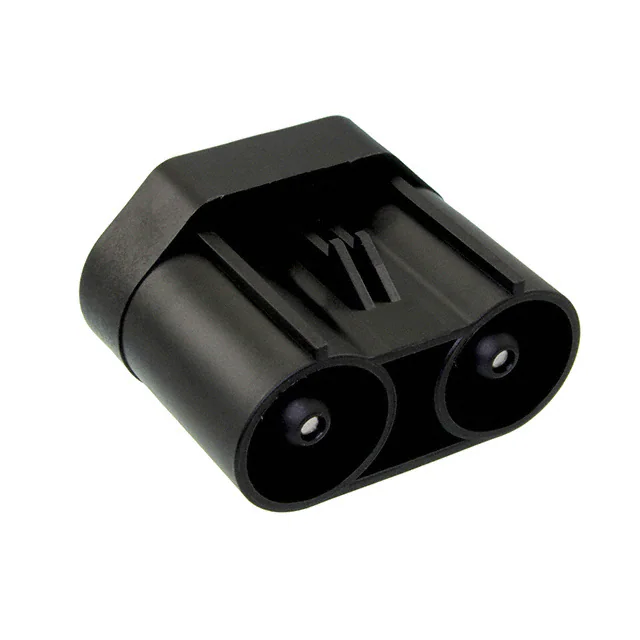

Molex-2046000001 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.984" (25.00mm)
Number of Positions:	2
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded
Mounting Type:	Surface Mount
Termination:	Screw
Fastening Type:	Latch Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	-
Contact Shape:	Circular
Contact Finish - Mating:	Silver
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Silver
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	200A
Voltage Rating:	600V

Molex 2046000001
