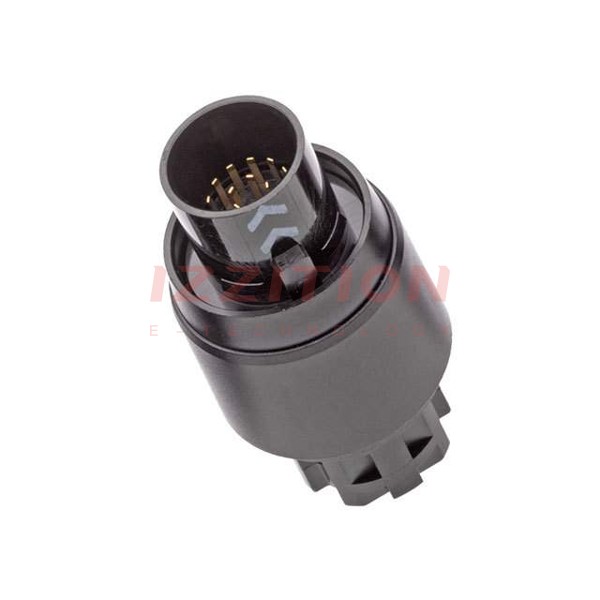

Molex-2021121710 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Plug, Male Pins
Number of Positions:	17
Shell Size - Insert:	-
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Solder Cup
Fastening Type:	Latch Lock, Push-Pull
Orientation:	Keyed
Primary Material:	Plastic
Shell Material:	Polyphenylsulfone (PPSU)
Shell Finish:	-
Contact Finish - Mating:	Gold
Color:	Black
Ingress Protection:	IP50 - Dust Protected
Material Flammability Rating:	-
Features:	Backshell, Spring Lock, Strain Relief
Shielding:	-
Current Rating (Amps):	1.6A
Voltage Rating:	300VAC
Cable Opening:	-
Operating Temperature:	-40°C ~ 105°C

Molex 2021121710
