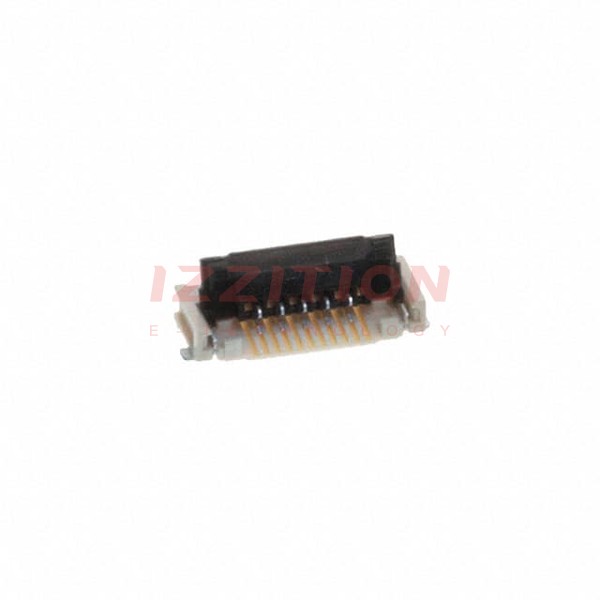

Molex 2005290050

Manufacturer No:
2005290050
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
2005290050 Datasheet
ECAD Model:
-
Description:
1.0 FPC ZIF BTM CONT EMBT PKG 5C
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:5
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.075" (1.90mm)
Locking Feature:Flip Lock
Cable End Type:Straight, Tabbed
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:Polyamide (PA), Nylon, Glass Filled
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:-
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$0.49
962

Please send RFQ , we will respond immediately.
