2002411212
  • Share:

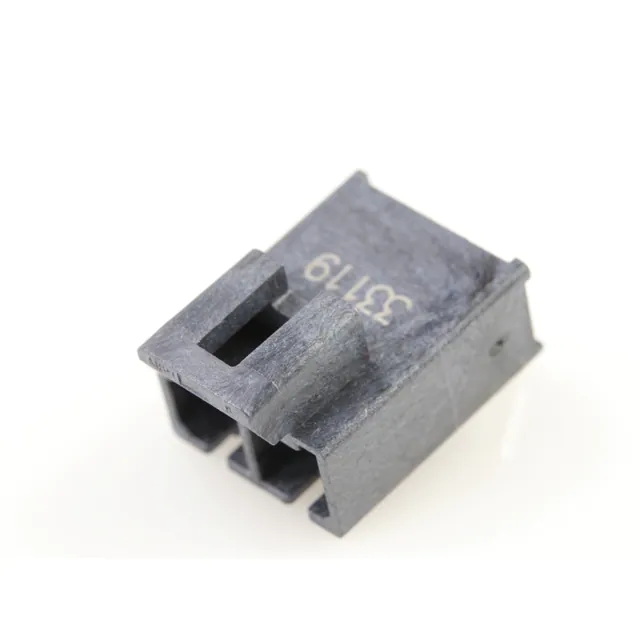

Molex 2002411212

Manufacturer No:
2002411212
Manufacturer:
Molex
Package:
Tray
Datasheet:
2002411212 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 2POS 5.7MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.224" (5.70mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.437" (11.10mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:Copper
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide, Glow Wire Compliant
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:600VAC/DC
0 Remaining View Similar

In Stock

$1.46
392

Please send RFQ , we will respond immediately.
