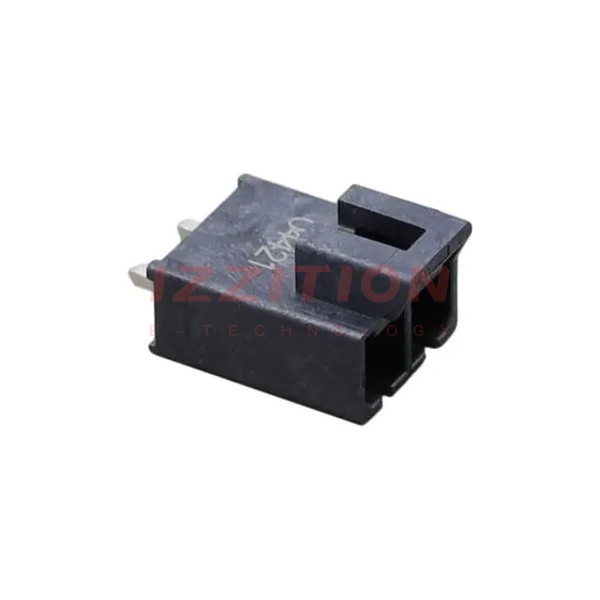

Molex-2002411132 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.224" (5.70mm)
Number of Positions:	2
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.127" (3.23mm)
Overall Contact Length:	-
Insulation Height:	0.689" (17.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.00µin (0.076µm)
Contact Finish - Post:	Tin
Contact Material:	Copper
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Guide, Glow Wire Compliant
Operating Temperature:	-40°C ~ 120°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	600VAC/DC
