Molex 1800812230

Manufacturer No:
1800812230
Manufacturer:
Molex
Package:
Tray
Datasheet:
1800812230 Datasheet
ECAD Model:
-
Description:

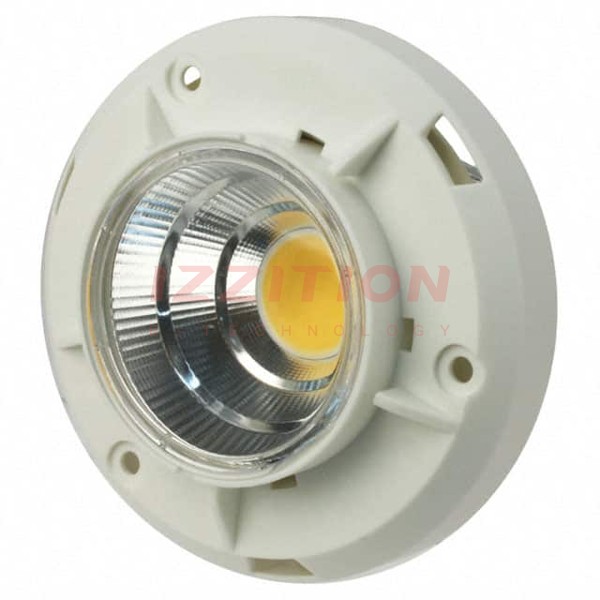

80MM 800 LUMEN 3000K 32DEG
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:LED Module
Color:White, Warm
CCT (K):3000K
Wavelength:-
Configuration:Round
Luminous Flux @ Current/Temperature:-
Current - Test:700mA
Temperature - Test:-
Voltage - Forward (Vf) (Typ):11.4V
Lumens/Watt @ Current - Test:61 lm/W
Current - Max:1.4A
CRI (Color Rendering Index):82
Viewing Angle:32°
Features:-
Size / Dimension:80.00mm Dia
Height:27.85mm
Light Emitting Surface (LES):-
Lens Type:Flat
0 Remaining View Similar

In Stock

-
81

Please send RFQ , we will respond immediately.
