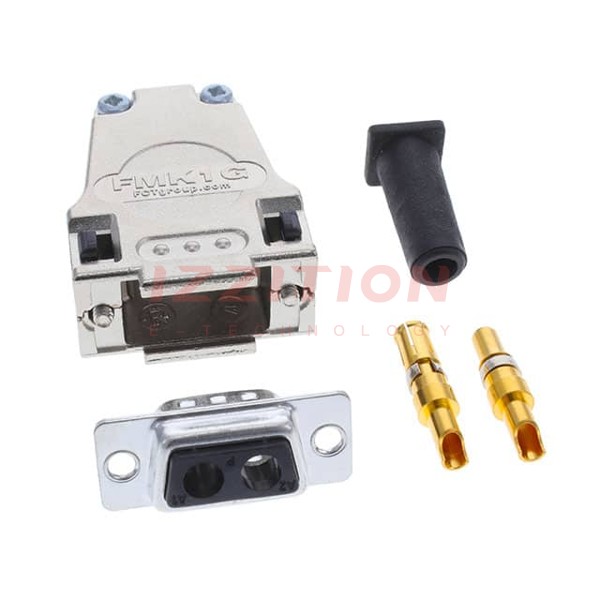

Molex-1731140082 - D-Sub Connectors Product Specifications and Latest Quotes

Connector Style:	D-Sub, Combo
Connector Type:	Plug, Female Sockets and Male Pins
Number of Positions:	2 (Power)
Number of Rows:	1
Mounting Type:	Free Hanging (In-Line)
Shell Size, Connector Layout:	1 (DE, E) - 2V2, 2W2C
Contact Type:	Power
Flange Feature:	Housing/Shell (Unthreaded)
Termination:	Solder Cup
Primary Material:	-
Shell Material, Finish:	Steel, Tin Plated
Contact Finish:	Gold
Contact Finish Thickness:	4.00µin (0.100µm)
Ingress Protection:	-
Material Flammability Rating:	-
Current Rating (Amps):	20A
Backset Spacing:	-
Features:	Backshell, Cable Clamp, Grounding Indents, Mounting Hardware, Strain Relief

Molex 1731140082
