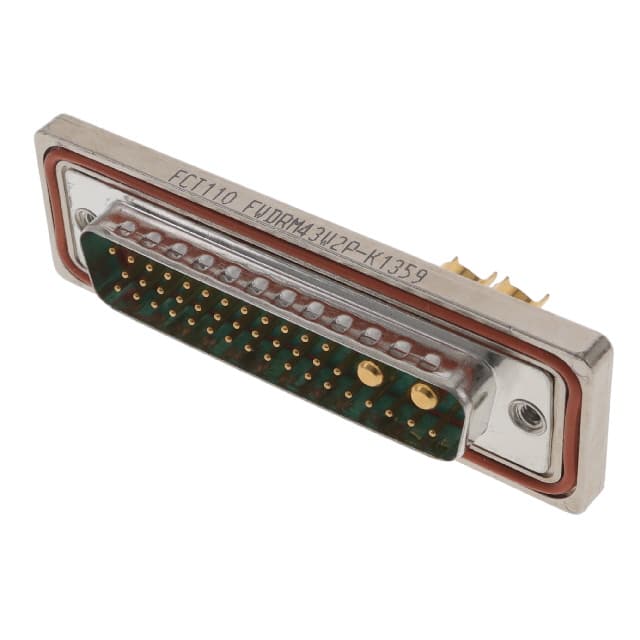

Molex-1731100432 - D-Sub Connectors Product Specifications and Latest Quotes

Connector Style:	D-Sub, Combo
Connector Type:	Plug, Male Pins
Number of Positions:	43 (41 + 2 Coax or Power)
Number of Rows:	3
Mounting Type:	Free Hanging (In-Line)
Shell Size, Connector Layout:	5 (DD, D) - 43W2
Contact Type:	Signal and Coax or Power (Not Included)
Flange Feature:	Housing/Shell (Unthreaded)
Termination:	Solder Cup
Primary Material:	Metal
Shell Material, Finish:	Brass, Tin Plated
Contact Finish:	Gold
Contact Finish Thickness:	31.0µin (0.79µm)
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	5A
Backset Spacing:	-
Features:	Grounding Indents

Molex 1731100432
