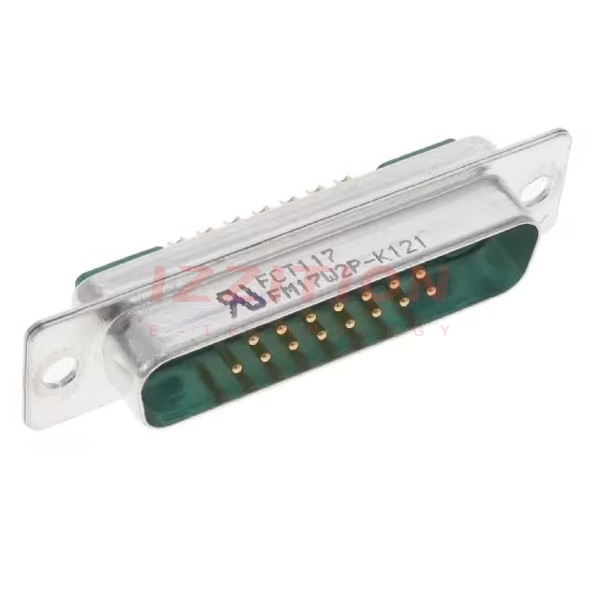

Molex-1731071441 - D-Sub Connectors Product Specifications and Latest Quotes

Connector Style:	D-Sub, Combo
Connector Type:	Plug, Male Pins
Number of Positions:	17 (15 + 2 Coax or Power)
Number of Rows:	2
Mounting Type:	Free Hanging (In-Line)
Shell Size, Connector Layout:	3 (DB, B) - 17W2
Contact Type:	Signal and Coax or Power (Not Included)
Flange Feature:	Housing/Shell (Unthreaded)
Termination:	Solder
Primary Material:	Metal
Shell Material, Finish:	Steel, Tin Plated
Contact Finish:	Gold
Contact Finish Thickness:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	5A
Backset Spacing:	-
Features:	Grounding Indents

Molex 1731071441
