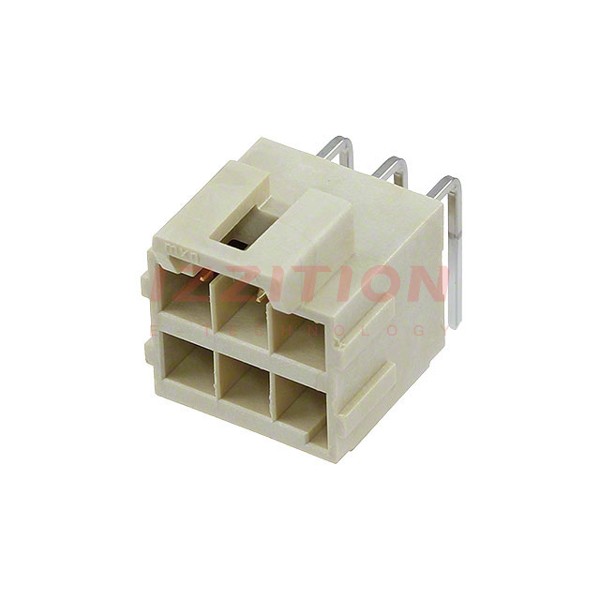

Molex-1723162206 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.138" (3.50mm)
Number of Positions:	6
Number of Rows:	2
Row Spacing - Mating:	0.181" (4.60mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	-
Insulation Height:	0.534" (13.56mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Guide
Operating Temperature:	-40°C ~ 120°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	400V

Molex 1723162206
