1722871106
  • Share:

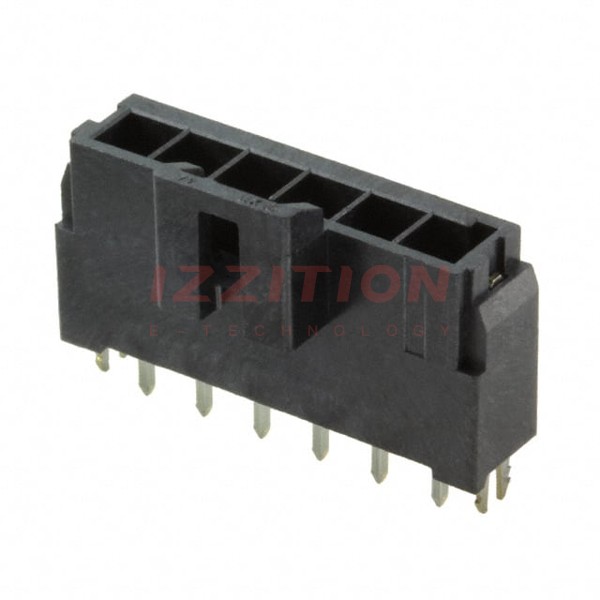

Molex 1722871106

Manufacturer No:
1722871106
Manufacturer:
Molex
Package:
Bulk
Datasheet:
1722871106 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 6POS 3.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.138" (3.50mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.465" (11.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Solder Retention
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:400V
0 Remaining View Similar

In Stock

$1.42
366

Please send RFQ , we will respond immediately.
