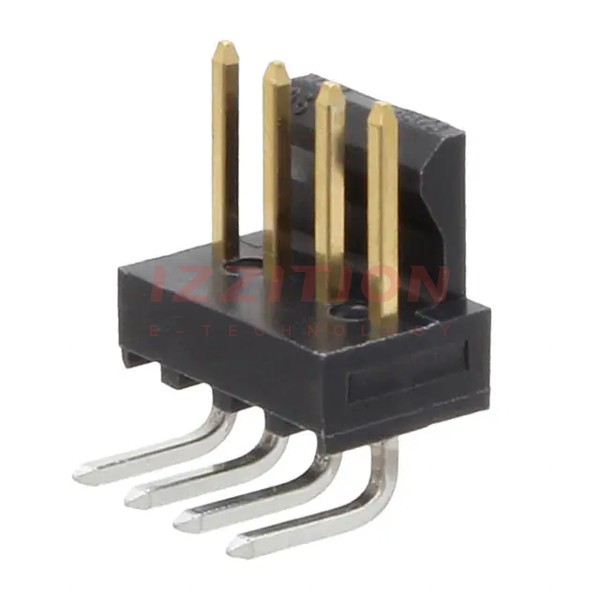

Molex-1718571004 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.265" (6.73mm)
Contact Length - Post:	0.100" (2.54mm)
Overall Contact Length:	-
Insulation Height:	0.250" (6.35mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Molex 1718571004
