1718130006
  • Share:

Molex 1718130006

Manufacturer No:
1718130006
Manufacturer:
Molex
Package:
Bulk
Datasheet:
1718130006 Datasheet
ECAD Model:
-
Description:

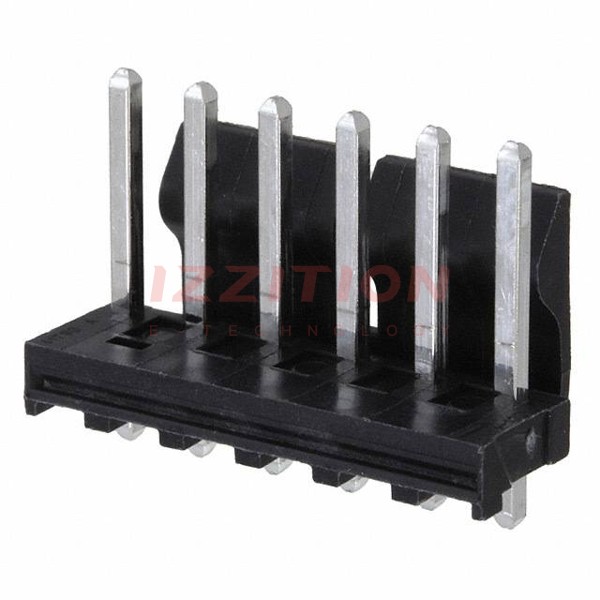

CONN HEADER VERT 6POS 3.96MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.448" (11.38mm)
Contact Length - Post:0.093" (2.35mm)
Overall Contact Length:0.671" (17.05mm)
Insulation Height:0.446" (11.33mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.83
662

Please send RFQ , we will respond immediately.
