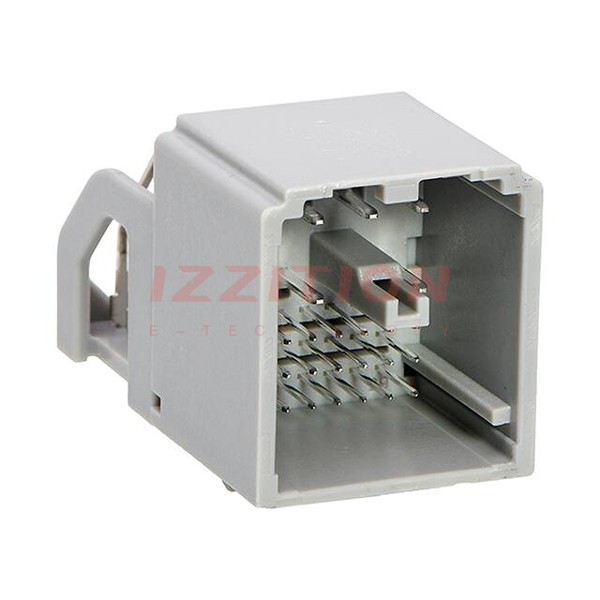

Molex 1600136604

Manufacturer No:
1600136604
Manufacturer:
Molex
Package:
Tube
Datasheet:
1600136604 Datasheet
ECAD Model:
-
Description:
AK50 HYB HDR ASSY 28 CKT KEY4/28
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:-
Number of Positions:28
Number of Rows:-
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.902" (22.90mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Syndiotactic Polystyrene (SPS)
Features:Board Guide
Operating Temperature:-40°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):-
Voltage Rating:500VDC
0 Remaining View Similar

In Stock

$2.98
4

Please send RFQ , we will respond immediately.
