Molex-1600133041 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Blade
Pitch - Mating:	-
Number of Positions:	56 (28 + 28)
Number of Rows:	-
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.083" (2.11mm)
Overall Contact Length:	-
Insulation Height:	0.902" (22.90mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	-
Features:	Board Guide
Operating Temperature:	-40°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 HB
Insulation Color:	Gray
Current Rating (Amps):	-
Voltage Rating:	-

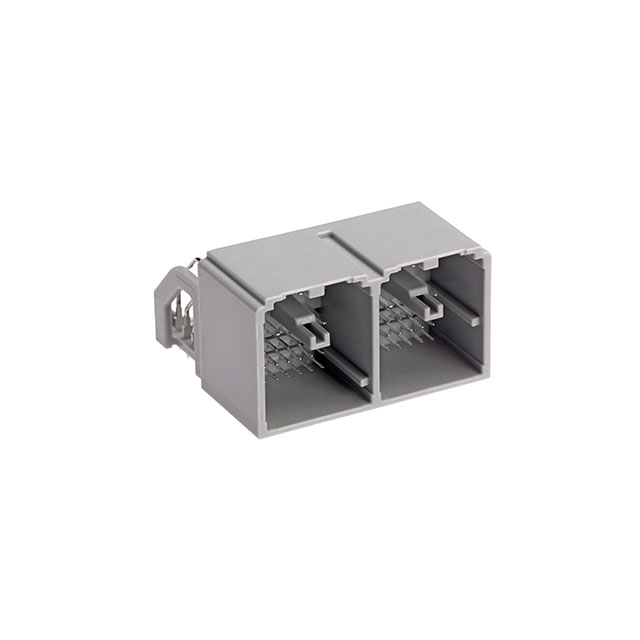

Molex 1600133041
