Molex-1554216010 - Multiple Conductor Cables Product Specifications and Latest Quotes

Cable Type:	Multi-Pair, Cat5e
Number of Conductors:	8 (4 Pair Twisted)
Wire Gauge:	24 AWG
Conductor Strand:	19/0.0047"
Conductor Material:	Copper, Bare
Jacket (Insulation) Material:	Weld-Slag Oil Resistant (WSOR)
Jacket (Insulation) Diameter:	0.307" (7.80mm)
Shield Type:	Foil, Braid
Length:	328.1' (100.0m)
Jacket Color:	Teal
Ratings:	UL Style 21215
Features:	-
Voltage:	600 V
Operating Temperature:	-10°C ~ 60°C
Usage:	Industrial, Network
Jacket (Insulation) Thickness:	-

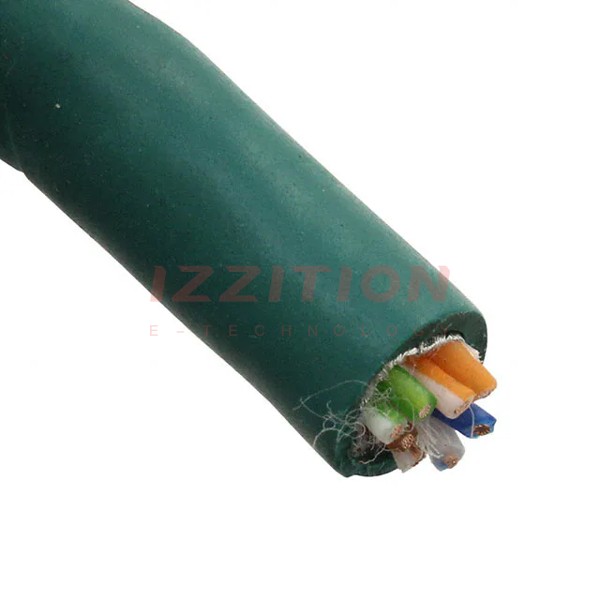

Molex 1554216010
