Molex-1511173410 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	10
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.142" (3.61mm)
Contact Length - Post:	0.102" (2.60mm)
Overall Contact Length:	-
Insulation Height:	0.252" (6.40mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	78.7µin (2.00µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	Glow Wire Compliant, Pick and Place
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2A per Contact
Voltage Rating:	125VAC

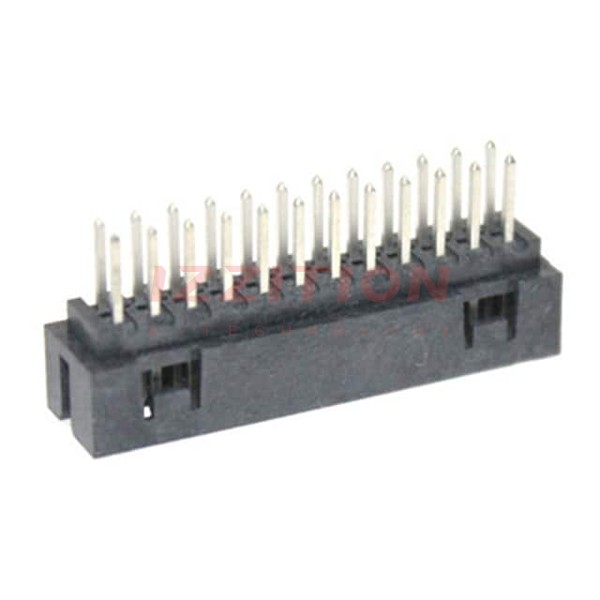

Molex 1511173410
