1510481601
  • Share:

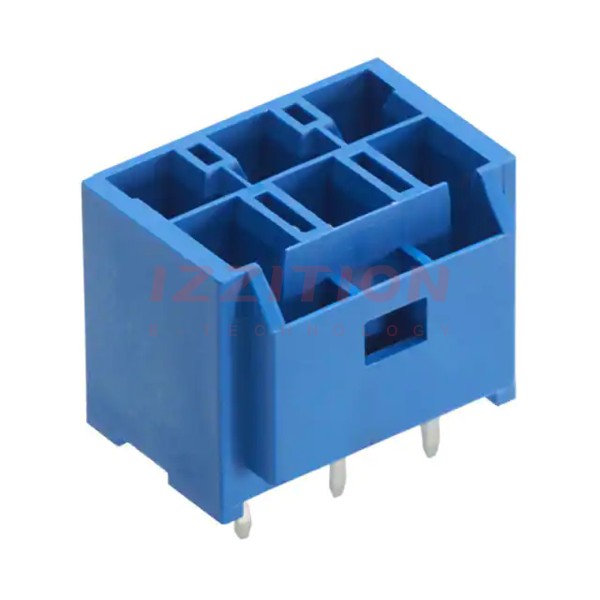

Molex 1510481601

Manufacturer No:
1510481601
Manufacturer:
Molex
Package:
Tray
Datasheet:
1510481601 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 6POS 6.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.256" (6.50mm)
Number of Positions:6
Number of Rows:2
Row Spacing - Mating:0.256" (6.50mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.348" (8.85mm)
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:0.630" (16.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:50.0µin (1.27µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Blue
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$2.32
359

Please send RFQ , we will respond immediately.
