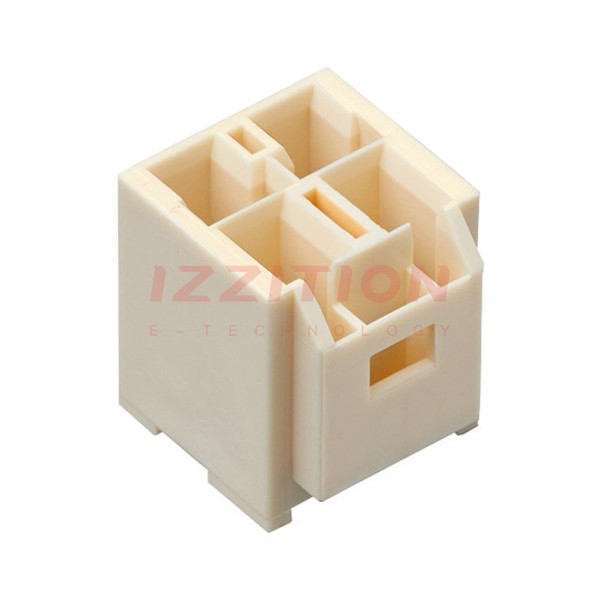

Molex-1510481411 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.256" (6.50mm)
Number of Positions:	4
Number of Rows:	2
Row Spacing - Mating:	0.256" (6.50mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.348" (8.85mm)
Contact Length - Post:	0.150" (3.81mm)
Overall Contact Length:	-
Insulation Height:	0.630" (16.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	50.0µin (1.27µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Board Guide
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	-

Molex 1510481411
