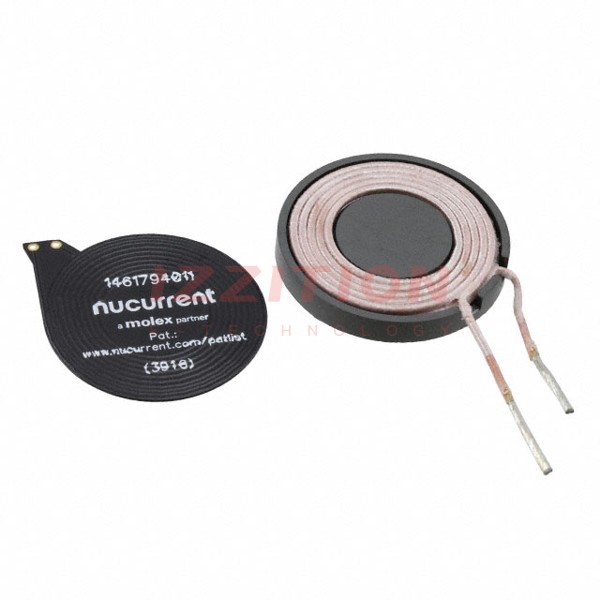

Molex 1461794011
Manufacturer No:
1461794011
Manufacturer:
Molex
Package:
Tray
Datasheet:
1461794011 Datasheet
ECAD Model:
-
Description:
RX TX 2 COIL 1 LAYER 9.6UH 5.6UH
Delivery:
Payment:
Product Attributes
Function:
Receiver, Transmitter
Type:
2 Coil, 1 Layer
Inductance:
9.6µH, 5.6µH
Tolerance:
±2%
DC Resistance (DCR):
550mOhm, 38mOhm
Q @ Freq:
18 @ 200kHz, 160 @ 200kHz
Current Rating (Amps):
-
Current - Saturation (Isat):
-
Frequency - Self Resonant:
-
Operating Temperature:
-
Size / Dimension:
1.06" Dia x 0.15" H (27.0mm x 3.7mm)
0
Remaining
View Similar
In Stock
UnitPrice:
$7.20
Quantity:
32
Please send RFQ , we will respond immediately.
