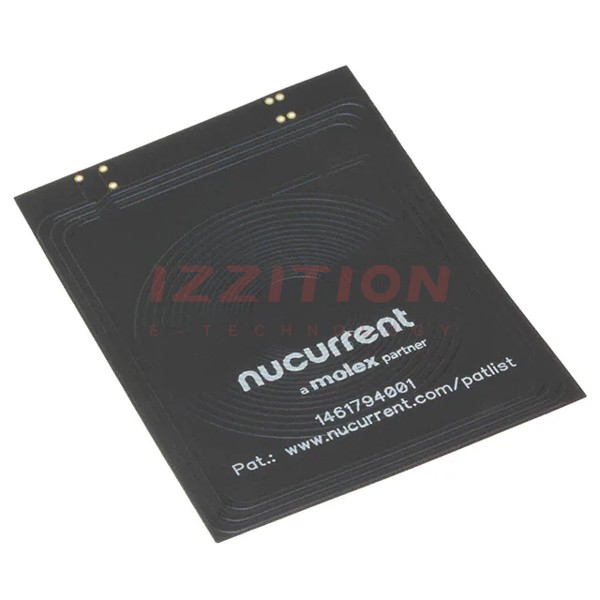

1461794001 Image
×
Favorite
Compare
Add to RFQ
Share:
Molex 1461794001
Manufacturer No:
1461794001
Manufacturer:
Molex
Package:
Bulk
Datasheet:
1461794001 Datasheet
ECAD Model:
-
Description:
RX 2 COIL 1 LAYER 8.9UH
Delivery:
Payment:
Product Attributes
Function:
Receiver
Type:
2 Coil, 1 Layer
Inductance:
8.9µH
Tolerance:
±2%
DC Resistance (DCR):
350mOhm
Q @ Freq:
25 @ 200kHz
Current Rating (Amps):
-
Current - Saturation (Isat):
-
Frequency - Self Resonant:
-
Operating Temperature:
-
Size / Dimension:
2.58" L x 1.91" W x 0.02" H (65.5mm x 48.4mm x 0.5mm)
0
Remaining
View Similar
In Stock
UnitPrice:
$11.12
Quantity:
45
