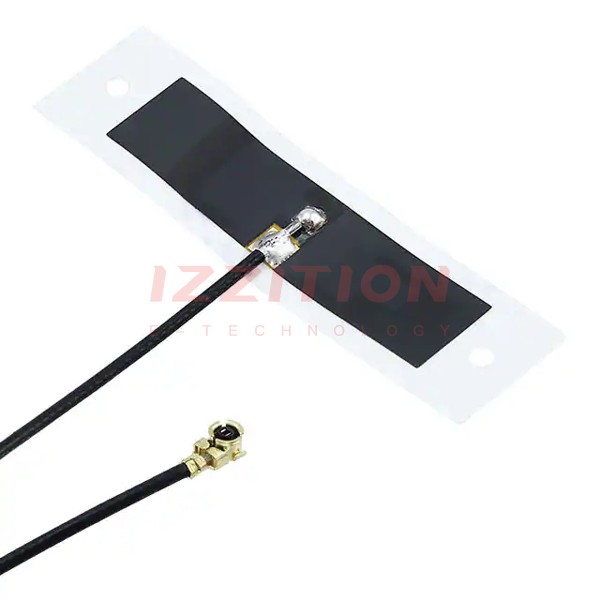

Molex 1461531200

Manufacturer No:
1461531200
Manufacturer:
Molex
Package:
Tray
Datasheet:
1461531200 Datasheet
ECAD Model:
-
Description:
RF ANT 2.4/5GHZ FLAT PATCH 200MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

RF Family/Standard:802.15.4, WiFi
Frequency Group:UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band):2.4GHz, 5GHz
Frequency Range:-
Antenna Type:Flat Patch
Number of Bands:2
VSWR:-
Return Loss:-10dB
Gain:3dBi, 4.5dBi
Power - Max:2 W
Features:Cable - 100mm
Termination:IPEX MHF4L
Ingress Protection:-
Mounting Type:Adhesive
Height (Max):0.004" (0.10mm)
Applications:WLAN, Zigbee™
0 Remaining View Similar

In Stock

$3.33
38

Please send RFQ , we will respond immediately.
